Pulleys

AustriAlpin Lightweight Pulley

Hinged side blades and synthetic pulley sheave. To be used with ropes up to 12 mm.

Weight 48g
Length 70mm
Width 36mm
recomm. rope diametermax. 12mm
Intake 12mm
Inner diameter 19mm
Min. breaking load 15kN
Load capacity 2x2kN
Made in Austria
EN 12278:2007

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
9792-00		AustriAlpin Lightweight Pulley	Stock Level: In Stock	RRP: $31.00	Quantity:		Add to Favourites

CMC Proswivel Pulleys

Our new Prusik-minding pulley (PMP) is ideal for high anchor points
or tripod use. The rotating swivel aligns the rope with the direction of
the pull. Its stainless steel sheave can be used with either rescue
rope or wire cable. By combining the swivel with the pulley, overall
system length is minimized, increasing travel. The patented pivoting
side plate allows the rope to be quickly inserted.
• Stainless steel sheave allows use with wire cable
• Prusik-minding side plate opens without having to disconnect the pulley from the anchor
• A double-detent button prevents accidental opening of side plate
• Sealed ball bearings provide maximum efficiency
PRODUCT WEIGHT 11.3 OZ (320 G)
TYPE SINGLE SHEAVE TREAD SIZE 1-1/2 X 1/2 IN (38 X 13 MM)
SHEAVE STAINLESS STEEL
COLOR BRONZE / SLATE
NFPA RATING GENERAL USE
3 SIGMA MBS 43 KN

Code	Product Name	Stock Level	Price	Quantity	Wishlist
C300430	CMC 1.5" PMP S/S Swivel Pulley	Stock Level: Pre-order Special Order	RRP: $419.00	Quantity:	Add to Favourites
C300431	CMC 1.5" Single Swivel Pulley	Stock Level: Pre-order Special Order	RRP: $309.00	Quantity:	Add to Favourites
C300432	CMC Swivel Double Pulley	Stock Level: In Stock Special Order	RRP: $439.00	Quantity:	Add to Favourites
C300434	CMC PMP Swivel Pulley 1.1	Stock Level: In Stock Special Order	RRP: $285.00	Quantity:	Add to Favourites
C300436	CMC PMP Swivel Pulley 2.6	Stock Level: Pre-order Special Order	RRP: $649.00	Quantity:	Add to Favourites

CMC Aztek Omni Pulley

The AZTEK OMNI pulley blocks and sheaves are machined from solid
aluminum, feature swivel connection points, and utilize high-efficiency
bearings. These pulleys were developed in the early 2000’s by Reed
Thorne of Sedona based Ropes That Rescue. The AZTEK system has
become a valuable multipurpose tool of rescue and technical rope access
practitioners. The AZTEK pulleys are offered individually or included in
our AZTEK ProSeries System
Note: The Slate blue pulley includes the AZTEK quick release pin and the Orange pulley comes with the side becket cover and screw.
Orange
226g
Sheave 26mm x10mm
NFPA Technical Use
43kN

Code	Product Name	Stock Level	Price	Quantity	Wishlist
C300320	CMC Aztek Replacement Quick Release Pin	Stock Level: Pre-order Special Order	RRP: $78.00	Quantity:	Add to Favourites
C300321	CMC Aztek Omni Pulley Orange	Stock Level: Pre-order Special Order	RRP: $276.00	Quantity:	Add to Favourites
C300322	CMC Aztek Omni Pulley Slate Blue	Stock Level: Pre-order Special Order	RRP: $276.00	Quantity:	Add to Favourites

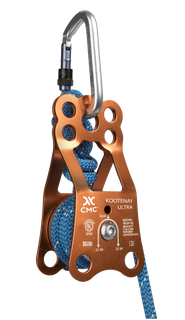

CMC Kootenay Ultra Pulley

Our Kootenay Ultra Pulley is the most functional, versatile knot-passing
and high-strength tie-off pulley available. For high lines, the rigging
holes allow for optimum separation of tag lines and hoist ropes for
reeving variations. For English and Norwegian reeves, a greater spread
between the hoist pulleys significantly reduces the chance of
inadvertent spinning of the load. Separate rigging holes make rigging
easier and also prevent carabiners from binding against each other. For
high-strength tie-offs, the integrated sheave-lock pin inserts easily
into the sheave-lock hole from its stowed axle position. The strong,
durable anodized aluminum sheave is fitted with sealed ball bearings for
long wear and high efficiency.
PRODUCT WEIGHT 1.6 LB (709 G)
SHEAVE TREAD SIZE 2-1/4 X 2-1/2 IN (57 X 64MM)
COLOR ORANGE
NFPA RATING GENERAL USE
3 SIGMA MBS 44 KN

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300391		CMC Kootenay Ultra Pulley	Stock Level: Pre-order Special Order	RRP: $649.00	Quantity:		Add to Favourites

CMC Proseries Double Pulley

CMC's high efficiency pulleys featuring precision sealed bearings for minimum loss of mechanical advantage in compound or complex pulley systems.
The large carabiner hole accecpts multiple carabiners. High strength aluminium side plates have a smoother, rounded more rope friendly edge. The bottom
is shaped for maximum efficiency with prussik hitches and also works well with Gibbs type ascenders.
Anodised aluminium sheave with full 2.25" tread diameter. Low profile axle fasteners
help eliminate the possibility of snagging when the pulley is moving.
Note - Do not load a single side only of a double pulley.
NFPA G EN12278
MBS Pulley 62kN
MBS Becket 24.5kN
Sheave 57 x 13mm
Max Rope 13mm
595g

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300442		CMC Proseries Double Pulley	Stock Level: In Stock	RRP: $340.00	Quantity:		Add to Favourites

CMC Rescue Pulleys

This lightweight, full-strength, Prusik-minding pulley is ideal for
mountain rescue, swiftwater, or other technical teams where equipment
weight is a significant consideration. By machining the side plates, the
thickness of the metal can be varied to maximize the strength-to-weight
ratio, a process that cannot be done with traditional bent metal side
plates. Sealed ball bearings provide high efficiency and aluminum side
plates protect the rope. An extremely low-profile stainless steel axle
assembly reduces snagging on rocks, roots, and uneven surfaces. Designed
for lifeline up to 1/2 inch (13 mm) in diameter.
38 x 13mm Sheave
145g
56kN Prussik minding

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300301		CMC Rescue Pulley Single	Stock Level: In Stock Special Order	RRP: $155.00	Quantity:		Add to Favourites
C300302		CMC Rescue Pulley Double	Stock Level: Pre-order Special Order	RRP: $270.00	Quantity:		Add to Favourites

CMC SWIVO Pulley

SWIVO combines a swivel, pulley, and oval carabiner into a single device for building compact rope systems. With its rounded carabiner frame, SWIVO clips easily into the CAPTO becket and other wide attachment points, improving load distribution, simplifying transitions, and maximizing travel in the haul system.

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
C300350		CMC SWIVO Single Pulley	Stock Level: Pre-order Special Order	RRP: $419.00	Quantity:		Add to Favourites
C300352		CMC SWIVO Double Pulley	Stock Level: In Stock Special Order	RRP: $549.00	Quantity:		Add to Favourites

DMM Gyro Pulleys

Developed in conjunction with our industry partners, the Gyro offers excellent performance in any rigging scenario.
A strong swing cheek pulley with high efficiency roller bearings that can be used for rescue loads.

DMM iD is built into every Gyro pulley, so the range can be easily integrated into PPE safety management systems.

MBS 50kN
WLL 10kN
Dimensions 97 x 68 x 31mm
Weight 225g
Max. Rope Diameter 13mm
Certification NFPA 1983: 2017 G, EN 12278:2007

Code	Product Name	Stock Level	Price	Quantity	Wishlist
96DPG	DMM Gyro Pulley	Stock Level: Out of Stock	RRP: $199.00	Unavailable for Online Purchase	Add to Favourites
96DPGPM	DMM Gyro Prussik Minding	Stock Level: In Stock	RRP: $199.00	Quantity:	Add to Favourites
96DPGT	DMM Gyro Twin Pulley	Stock Level: Out of Stock	RRP: $225.00	Unavailable for Online Purchase	Add to Favourites

DMM Pinto 2 Pulley

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
DPUL131		DMM Pinto 2 Pulley	Stock Level: Out of Stock	RRP: $105.00	Unavailable for Online Purchase		Add to Favourites

DMM Pinto Rig 2 Pulley

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
DPUL141		DMM Pinto Rig 2 Pulley	Stock Level: Out of Stock	RRP: $147.00	Unavailable for Online Purchase		Add to Favourites

DMM Triple Attachment Pulley 2

Everyones favourite pulley just got better! The Triple Attachment Pulley forms an integral part of the Hitch Climber System and is a firm favourite of working at height professionals the world over. Three hole contruction makes rigging and organising much simpler and allows for off-centre hanging to minimise rope to pulley friction.
The updated design features sealed bearings in place of bushings, offering improved efficiency. Improving ease of use, the new U shape ( rather than V shape ) above the sheave increases volume. This means rope feeds in more easily when used in hitch climber systems.
Features
- Bushings have been replaced with sealed bearings
- Updated straight sides tend the hitch better
- Extra volume in U shape rather than V shape above sheave means rope feeds in more easily when used in hitch climber system
- Rigging plate helps organise single or multiple attachments
- Fairlead flares help maintain high working efficiency
- compatible with most carabiner shapes and many textile connecting elements including ropes and webbing
- Size of attachment holes reduce probability of unwanted rotation of locking carabiners
- Direct connections to textile components at the rounded edged attachment holes, helping to reduce system costs, increase lift height, minimise space required and enhance tolerance to torsion
- Side plate shape allows an autoblock knot to function when the rope approaches the sides as well as the bottom of the pulley
- Tamper proof construction

30kN MBS
6kN WLL
94 x 68 x 33mm
150g
14mm Max rope diameter
42mm Sheave diameter
EN12278:2007

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
DPUL700RD		DMM Triple Attachment Pulley 2	Stock Level: In Stock Special Order	RRP: $132.00	Quantity:		Add to Favourites

Edelweiss Rotor 113R Bearing

ROTOR is a compact fixed side plate single pulley designed for ropes up to 12mm
Height 81 mm
Width 44 mm
Material Light Alloy
Sheave 21 mm
Diameter max. 12 mm
Weight 90 g
Breaking strength 20kN
Maximum workload 2 x 2,5 kN = 5 kN
Standard CE - EN12278 - UIAA
Colours may vary

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
7SWPEDB		Edelweiss Rotor 113R Bearing	Stock Level: In Stock	RRP: $89.00	Quantity:		Add to Favourites

Edelweiss Trafic 111 Pulley

TRAFIC 111 is a compact mobile plate single pulley (brass bearing) designed for ropes up to 11mm.
Height 72 mm
Width 58 mm
Material Light Alloy
Sheave 27,5mm
Diameter max. 11mm
Weight 120 g
Breaking Strength 20 kN
Maximum workload 2 x 2,5kN = 5 kN
Standard CE - EN 12278 - UIAA
Colours may vary

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
7SWPT		Edelweiss Trafic 111 Pulley	Stock Level: In Stock	RRP: $49.00	Quantity:		Add to Favourites

Edelweiss Trafic 116 Single Pulley

TRAFIC 116 is a mobile plate single pulley designed for hauling systems and heavy loads
(brass bearing), it accepts ropes up to 16mm.
Colours may vary

Height 121 mm
Width 82 mm
Material Light Alloy
Sheave 48 mm
Diameter max. 16mm
Efficiency N/A
Weight 270 g
Breaking strength 30 kN
Max workload 2 x 2,5kN = 5kN
StandardCE - EN 12278 - UIAA

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
97972E		Edelweiss Trafic 116 Single Pulley	Stock Level: In Stock	RRP: $79.00	Quantity:		Add to Favourites

Edelweiss Trafic 216 Double Pulley

TRAFIC 216 is a mobile plate double pulley designed for hauling systems and heavy loads
(brass bearings), it accepts ropes up to 16mm.
Equiped with a bottom becket to create complex systems.
Colours may vary

Height 143 mm
Width 82 mm
Material Light alloy
Sheave 48 mm
Diameter max. 16mm
Efficiency N/A
Weight 475 g
Breaking strength 30 kN
Maximum workload 2 x 2 x 2,5kN = 10kN
Standard CE - EN 12278 - UIAA

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
97972TE		Edelweiss Trafic 216 Double Pulley	Stock Level: In Stock	RRP: $115.00	Quantity:		Add to Favourites

Kong Block Roll

Single pulley with mobile side plates, low friction ball bearing, integrated blocker, designed for climbing and rescue.
Suitable for the recovery of materials in a wall, conceived for the preparation of single and double hoist for rescue and self-rescue.
For ropes up to 13mm diameters.
The rope clamp device is tested in accordance with pt. 4.2.1 of EN 567:13 norm.
High quality product, made in Italy!

- Rope Diameter: 8-13mm
- Weight: 550g
- Length: 280mm
- Strenght: 30 KN
- Sheave: Aluminium
- Ball Bearings
COLOUR MAY VARY

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
9794D		Kong Block Roll	Stock Level: In Stock	RRP: $359.00	Quantity:		Add to Favourites

Kong Extra Roll Pulley

Aluminum pulley with single wheel, mobile side plates and high efficiency (96%) ball bearing .
Equipped with two attachment points for use in complex lifting systems.
For ropes up to 13 mm diameter.
High quality product, in Italy!
- Strength: 30 KN, (15kN per side)
- Rope diameter: <16 mm
- Weight: 260 g
- Single Bracket / Single Sheave
- Sheave: Aluminium

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
97972		Kong Extra Roll Pulley	Stock Level: In Stock	RRP: $138.10	Quantity:		Add to Favourites

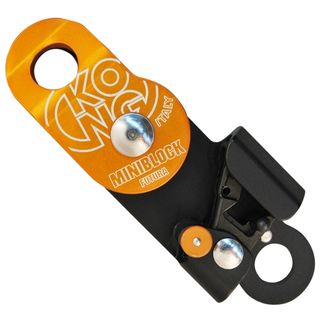

Kong Futura Mini Block

Low friction pulley fitted with a locking device that can be engaged and disengaged through the special pawl.
Compact and lightweight, conceived for mountaineering and rescue.Properly used in recovery, it becomes
fundamental for the preparation of simple or double hoists in rescue and self rescue.
Miniblock belongs to the ultra compact “Futura” family of blockers, which can be used in case of emergency
and for climbing.
High quality product, made in Italy!

Body material Alu alloy
Wheel material Alu alloy
Load (kN) 25
Ball Bearing Yes
Main dimension (mm) 130m
Max rope 12mm
CE EN 12278CE EN 567

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
9794MB		Kong Futura Mini Block	Stock Level: In Stock	RRP: $330.00	Quantity:		Add to Favourites

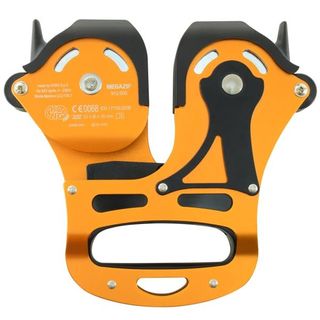

Kong MegaZip

Double pulley for long and fast zip lines (over 300 m).
Designed for use on 12 to 16 mm cables.
Large diameter steel pulleys and oversized bearings for longer life and smoother running.
Quick and intuitive cable insertion thanks to the innovative push&turn system, which at the same time requires a sequence of safety movements to disengage.
Equipped with supports for suspending the connectors to prevent wear caused by sliding on the metal cable, and rubber shock absorbers to cushion the end stop.
Certified according to the new standard for adventure parks EN 17109:20/B
High quality product fully developed and manufactured in Italy. Patented.
EN 17109
Body material Alu Alloy
Wheel material Steel
1310g
Ball Bearings
Main Dimension 215mm
Max Rope Diameter 16mm

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
97973M		Kong MegaZip	Stock Level: Out of Stock	RRP: $779.00	Unavailable for Online Purchase		Add to Favourites

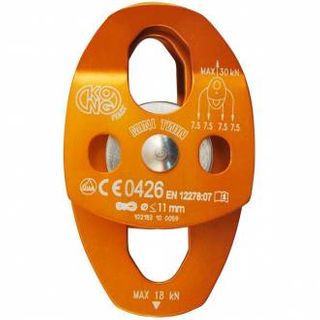

Kong Mini Twin Pulley

Compact aluminum pulley with double wheel, mobile side plates and high efficiency (91%) ball bearing.
Equipped with two attachment points for use in complex lifting systems.
For ropes up to 11 mm diameter.
High quality product, in Italy!

Body material Alu alloy
Wheel material Alu alloy
Efficiency (%)91
Load (kN) 30
Ball Bearing Yes
Weight 108g
Main dimension (mm) 105
Max rope diameter (mm) 11
CE EN 12278

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
97972TM		Kong Mini Twin Pulley	Stock Level: In Stock	RRP: $189.00	Quantity:		Add to Favourites

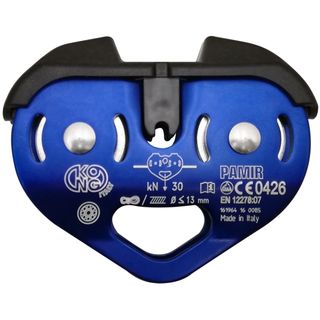

Kong Pamir Fast Pulley

Pulley with aluminum body and double steel wheels. For use on ropes or steel cables of maximum diameter 13 mm.
Ideal for tiroline in adventure parks, it is also useful for creating double hoist rescue or work.
High quality product completely made in Italy!
Conform to the requirements of the norm EN 17109.

ZIP CAP #826060000KK Top
protection that prevents the inadvertent introduction of fingers into
the rotating elements of the pulleys (as required by the norm EN 17109),
standard supplied!
- Rope/Cable diameter: <13mm rope
- Weight: 330g
- Strength: 30 kN

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
97973		Kong Pamir Fast Pulley	Stock Level: Out of Stock	RRP: $239.00	Unavailable for Online Purchase		Add to Favourites

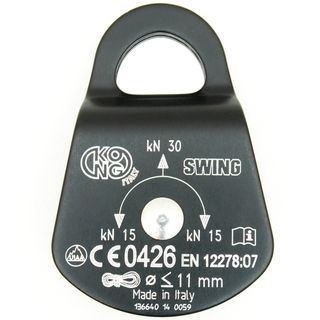

Kong Swing Pulley

Compact pulley with mobile side plates and bushings.
Colour - Silver
- Aluminum side plates and nylon wheel
- Strength: 30kN (15kN per side)
- Weight: 120g
- Rope Diameter: <11 mm
- Sheave: Nylon
CE EN 12278

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
9797A		Kong Swing Pulley	Stock Level: In Stock	RRP: $55.00	Quantity:		Add to Favourites

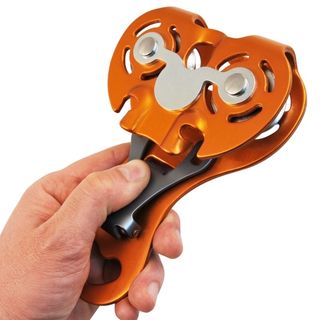

Kong Zip Evo

Evolution of the first pulley with an integrated connector which eliminates any possibility of error.
Improved handle ergonomics and simplicity of use thanks to the new lever which can be opened with one hand.
The special design ensures correct positioning on the rope in any situation.
Equipped with ball bearings for perfect smooth rolling.
It works on both ropes and metal cables up to 13 mm in diameter.
Top protection that prevents the inadvertent introduction of fingers into
the rotating elements of the pulleys (as required by the norm EN
17109), standard supplied!

Body material Alu alloy
Wheel material Steel
Efficiency (%) 95
Load (kN) 21
Ball Bearing Yes
Weight 390g
Main dimension (mm) 170mm
Max rope diameter (mm) 13mm
CE EN 12278 CE EN 17109

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
97973Z		Kong Zip Evo	Stock Level: In Stock	RRP: $299.00	Quantity:		Add to Favourites

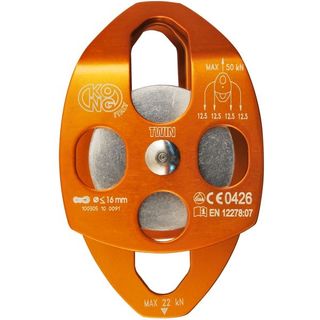

KongTwin Pulley

Aluminum pulley with double wheel, mobile side plates and high efficiency (96%) ball bearing.
Equipped with two attachment points for use in complex lifting systems.
For ropes up to 16 mm diameter.
High quality product, made in Italy!

Body material Alu alloy
Wheel material Alu alloy
Efficiency (%)96
Load (kN) 50
Ball Bearing Yes
Main dimension (mm) 141.5
Max rope diameter (mm) 16
CE EN 12278

Code	Image	Product Name	Stock Level	Price	Quantity	Quote	Wishlist
97972T		KongTwin Pulley	Stock Level: In Stock	RRP: $215.00	Quantity:		Add to Favourites

Shopping Cart

Search

Shop Now

Pulleys
